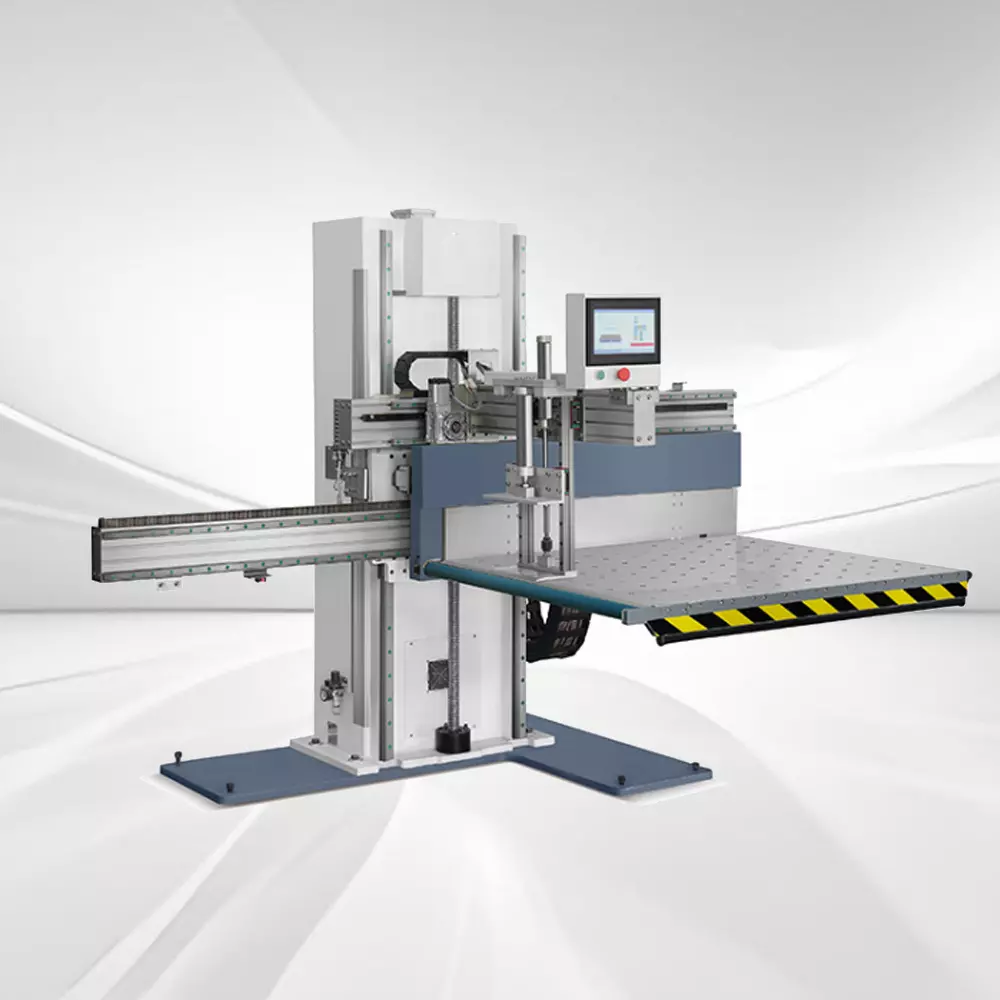

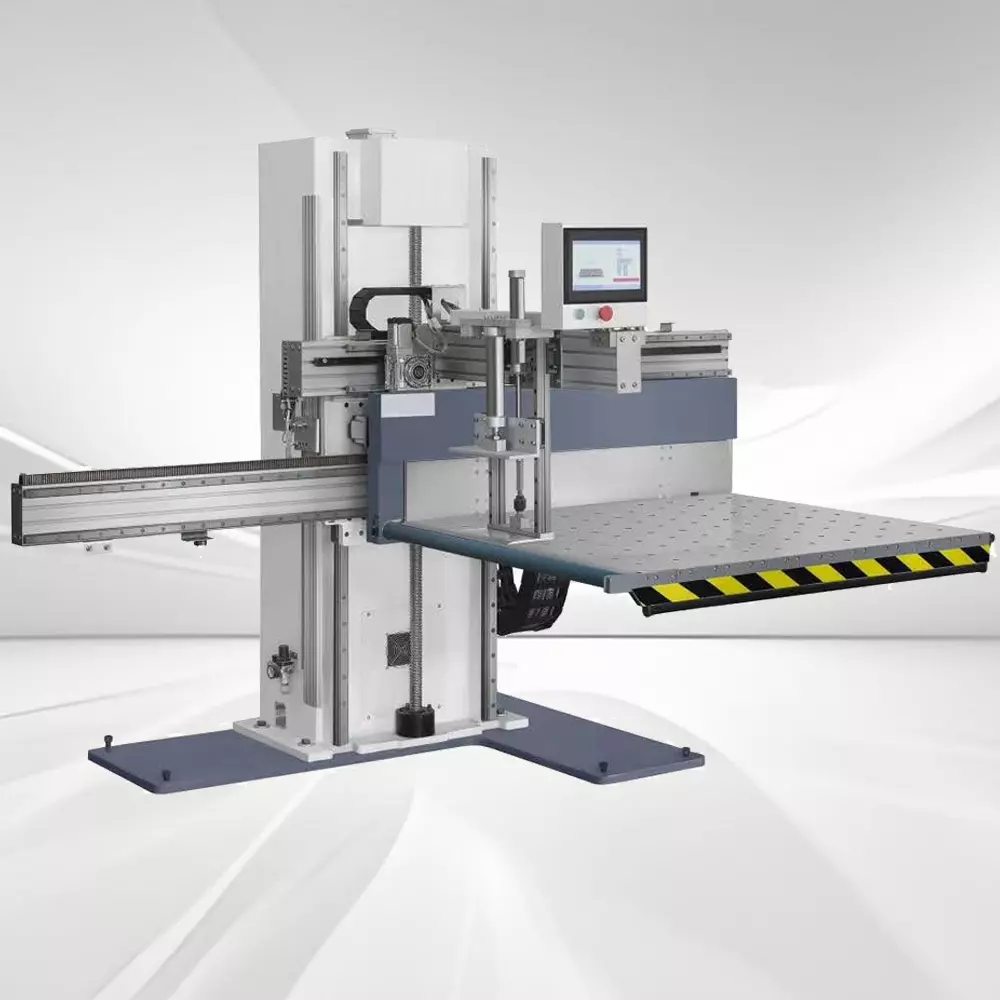

Paper picking machine

he whole paper picking process of the automatic paper picker is precise and efficient, which reduces labor intensity and improves productivity. During the lifting and lowering process of the machine table, the variable frequency drive is driven by worm gear reducer, and the ball screw linear double guide rail ensures the table to move precisely and stably. The table is moved left and right by the variable frequency drive. The worm gear reducer drives the rack and pinion drive.
The linear double guideway slider positioning makes the table move easily.

In addition, the platform that enters the stack drum to pick up paper and puts the paper into the cutter is also driven by Delta servo. The main electrical appliances include Schneider AC contactors, LG air switches, Omron proximity switches, NSK drive bearings, linear guides and ball screws; the display system comes standard with a 10.4-inch Taiwan touch LCD screen, with 10,000 program memories, and a pushing speed of up to 15 meters per minute. It is equipped with self-diagnostic function, Delta servo drive system and Delta PLC as standard.
