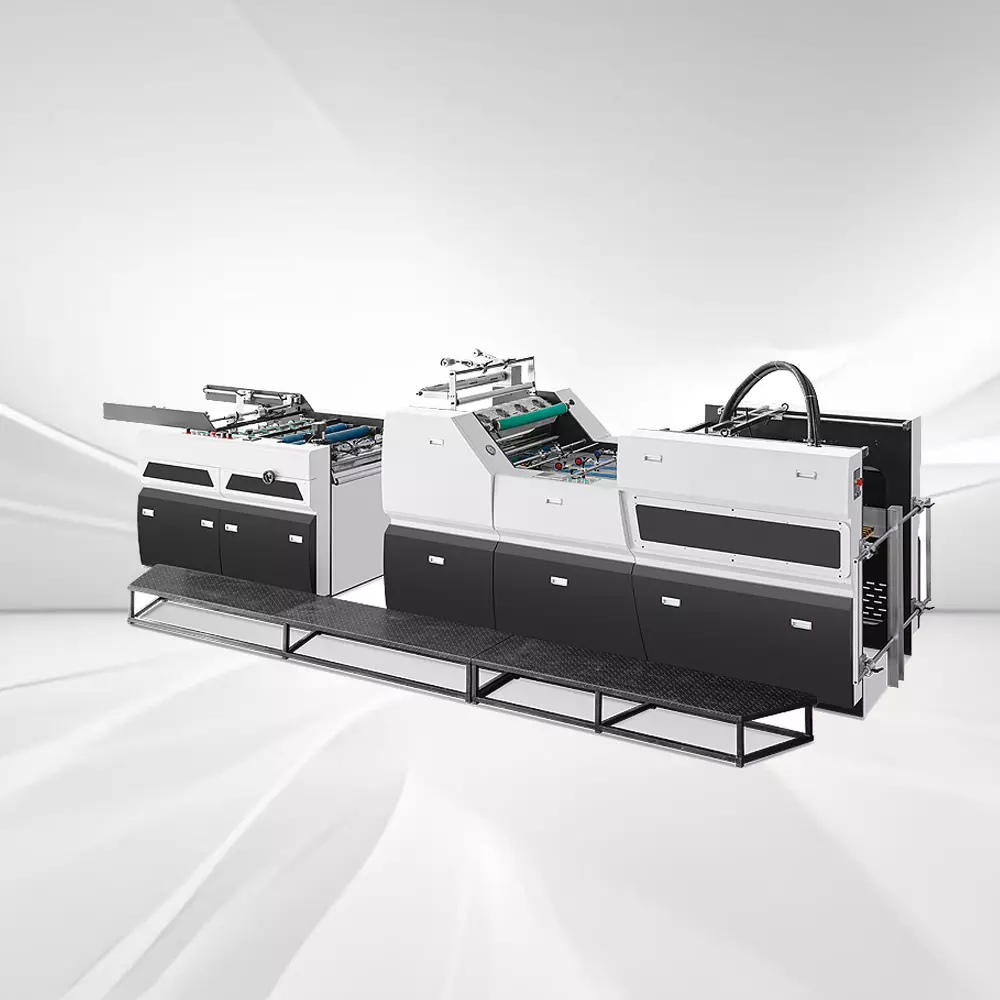

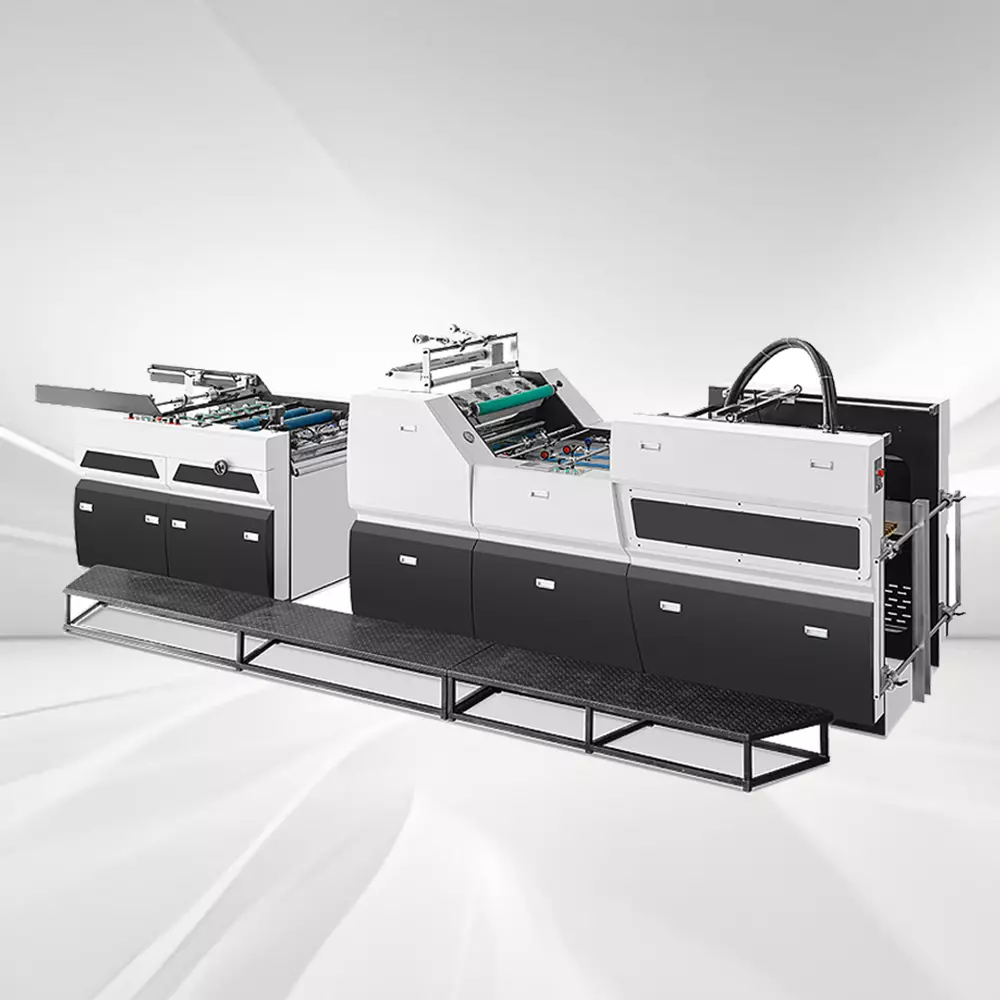

Automatic laminating machine

Features

一：Any combination of powerful multi-functional configuration can solve various problems of laminating process!

1：Double-sided laminating (both sides are laminated at the same time)

 2：Dust removal (remove surface dust and surface preheating, enhance surface brightness/mattity/and fit)

3：Double pressing (Enhanced surface compaction and fastness twice)       （optional )

4：UV dryer（Lamination has strong fastness, especially to solve the problem of embossing, embossing and embossing of the large solid base film）

5：Chain knife (cutting of tailless film and high toughness film such as PET and aluminum foil film)  （optional )

6：Hot knife (high speed) (Slitting of high toughness films such as tailless film and PET, aluminum foil film)（optional )

7：Coding (online coding)              （optional )

8：Corona device (to solve the problem of low corona value, silk screen, paste box, hot stamping, etc.) （optional )

9：Static elimination device (excessive static electricity, large paper adhesion)        （optional )

10：Embossing system: various embossing reflects the aesthetics of surface decoration!（optional )

二： Pre-stacker mechanism to realize non-stop paper feeding and receiving

三：Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation

四：High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.

五：Electromagnetic heating system: the temperature rises and falls quickly, the heating roller adopts an electromagnetic heating system and a built-in oil heating system to make sure the temperature is uniform.

六：Driven by the synchronous belt, the equipment is more stable and the accuracy is better.

七：The equipment adopts servo edging, which has higher accuracy and more stability

八：The main pressure shaft is combined with electric pressure

九：Automatic lifting film, reducing labor intensity and safety

十：The main roller adopts double chain, no jump, high running stability, it is not easy to stretch after a long time, which affects the accuracy!

一、 Applications

The YFMD-A series is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.

二：Technical parameters

三、Machine structure
