LG-4 Automatic unl oading machine

The automatic paper unloader is the core equipment of the cutting line. It has the function of automatically recognizing the size and position of the paper pile, and automatically feeding and unloading the paper, which can quickly transport the finished products of various textures to the predetermined position and automatically unload the paper from the working table to the base of the predetermined height. The whole process of paper feeding and unloading is accurate and efficient, reducing labor intensity and improving production efficiency.

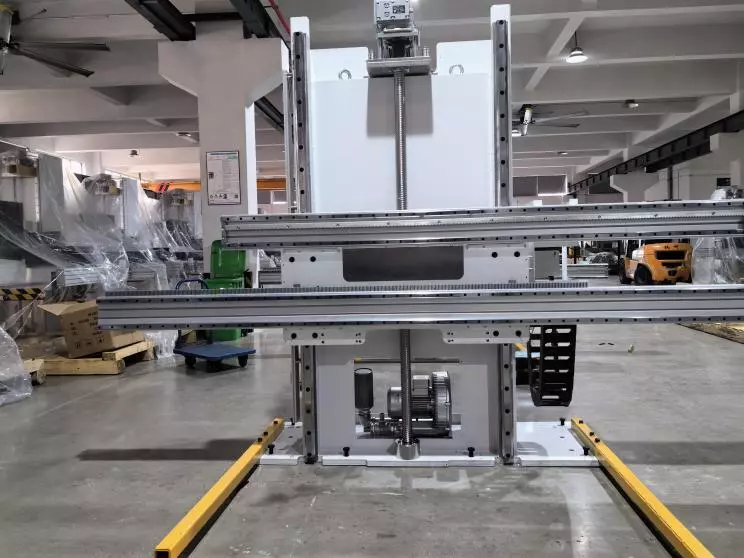

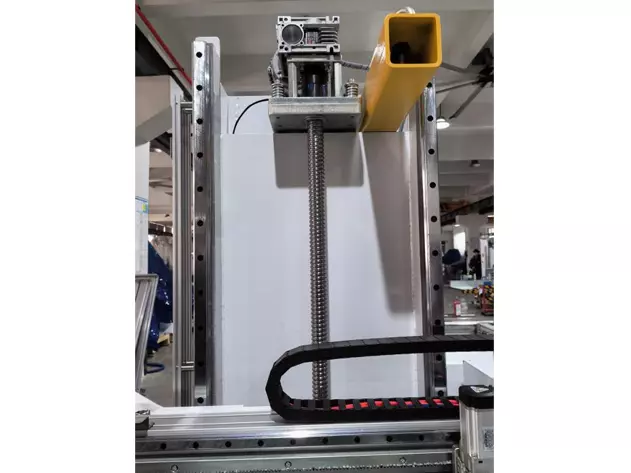

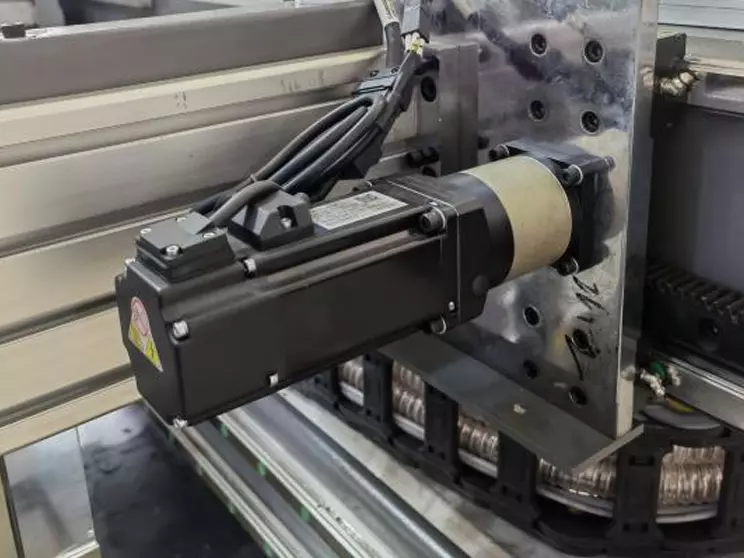

The working table is equipped with air cushion device, and the lifting process is frequency-driven by worm gear reducer driven ball screw linear double guide rail, which ensures the accurate and smooth movement of the working table. The table frequency conversion drive left and right movement is driven by worm gear reducer driven rack and pinion drive, linear dual guideway slider positioning makes the table move easily and freely. In addition, the left and right paper aligning adopts Delta servo drive. This machine has the advantages of automatic, accurate and efficient paper feeding and unloa

The main electrical appliances are Schneider AC contactor, LG air switch, Omron close to the light, NSK drive bearings, linear guides and ball screws; display system standard 10.4-inch Taiwan touch LCD screen, program storage capacity of up to 10,000, the fastest speed of paper pushing up to 15 m / min, with self-diagnostic fault function, standard with Delta servo drive system, PLC.

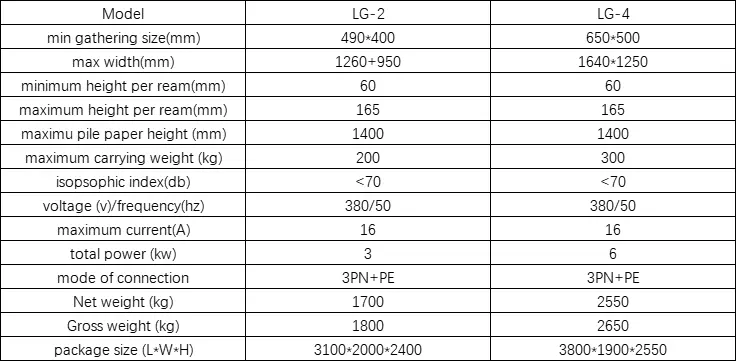

Parameter

Video

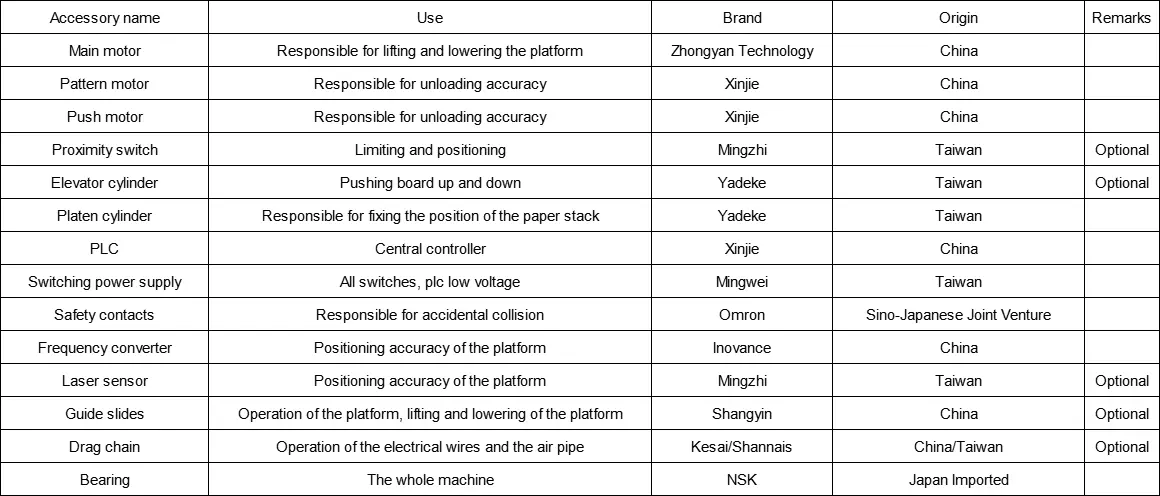

Configuration list

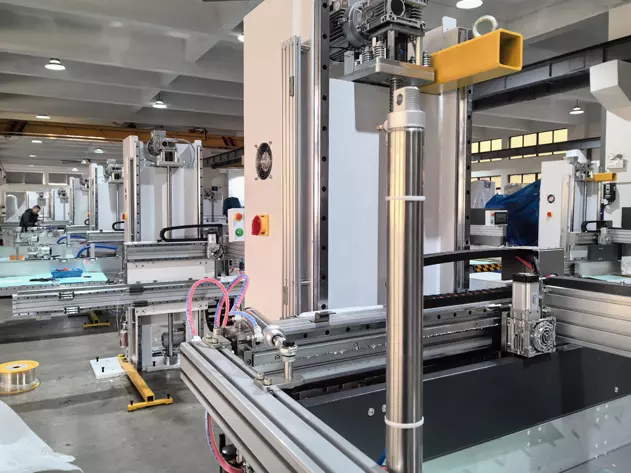

Machine Details

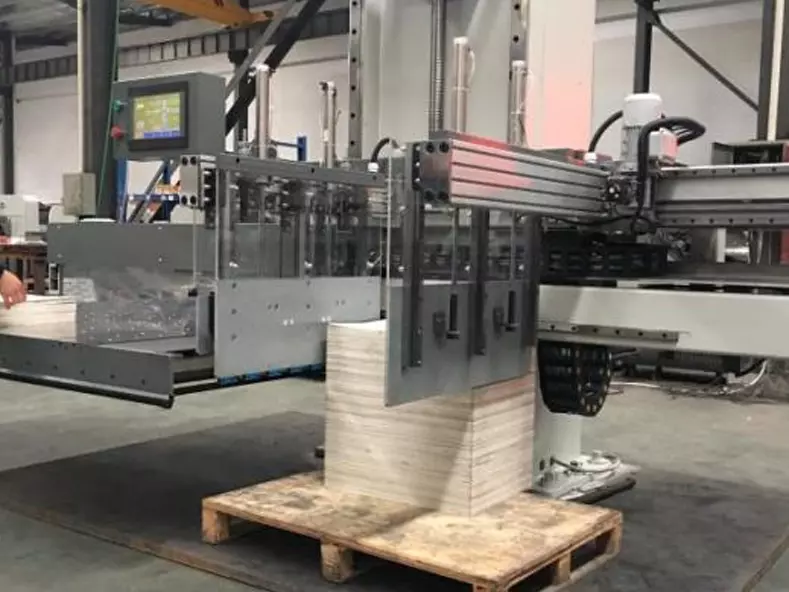

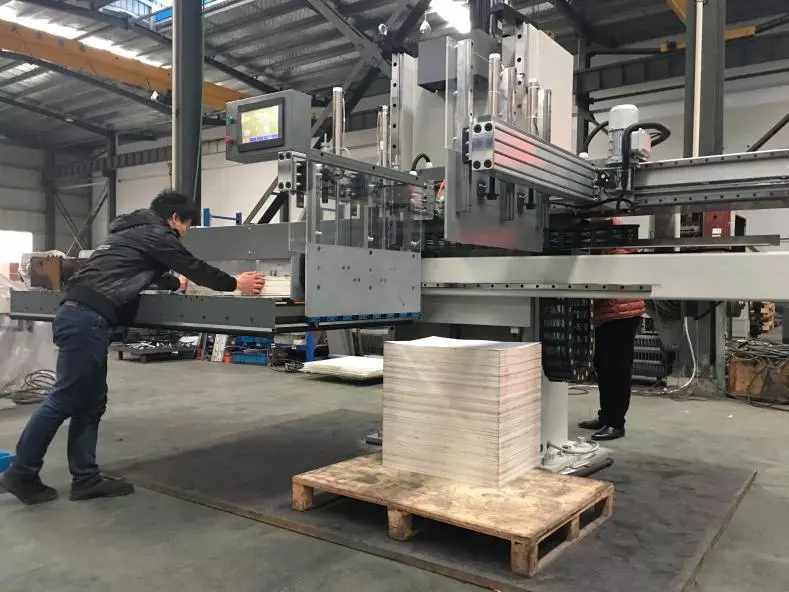

1. Automatic paper feeding, unloading, stacking function, quickly remove the paper from the worktable, and stacked neatly in the designated position, greatly reducing the labor intensity of workers.

2. Infrared position detection device, accurate detection of the position of the paper, to ensure that the paper stacked neatly. Anti-collision flexible bumper, effectively prevent accidental collision during machine movement.

3. Paper clamping pneumatic control, safe clamping of paper, protect the corners of paper from external impact. High-performance motor, imported from Taiwan. Equipped with 10.4 inch touch screen, making the operation simple and easy. Ergonomics, to avoid operating injuries.

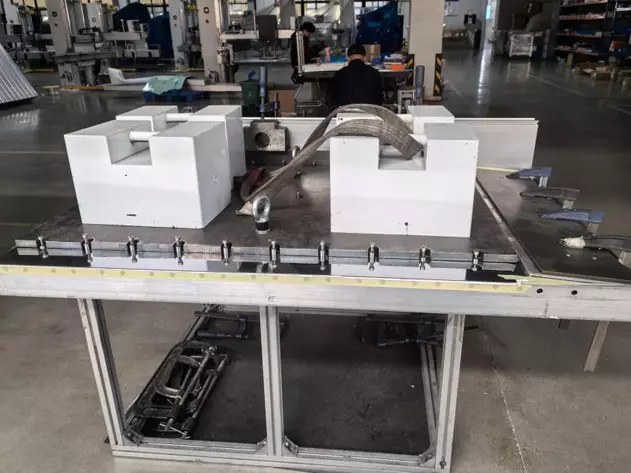

4. Optimized design of overweight safety stop protection. The working platform is equipped with blowing structure, which is convenient for pushing and unloading paper. Chrome-plated working platform saves users' maintenance time.

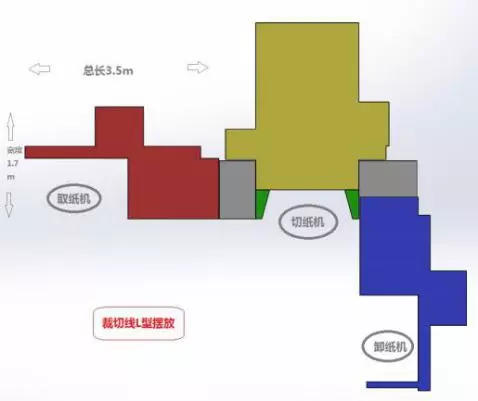

Placement method 1

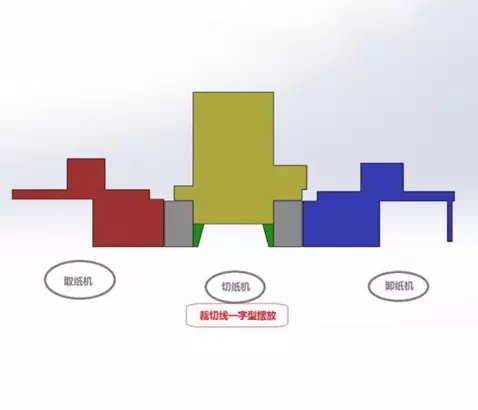

Placement method 2
