Automatic knife grinding machine
Automatic Knife Grinding Machine Model DMSQ-HF’s body is the gantry-type body which adopts the carbon constructional quality steel; Its wheel head transmission is rolling positioning linear guide; Rails can be replaced, that the machine can last longer, travel more stable drive.Its wheel head transmission is rolling positioning linear guide; Rails can be replaced, that the machine can last longer, travel more stable drive.
Automatic feed grinding wheel by the PLC program control system, automatic control, and memory, storage and dynamic tracking, simple operation, greatly reducing the time to prepare work piece ; can automatically adjust the coarse grinding, grinding times, the Brothers more convenient, is Medium-sized printers.

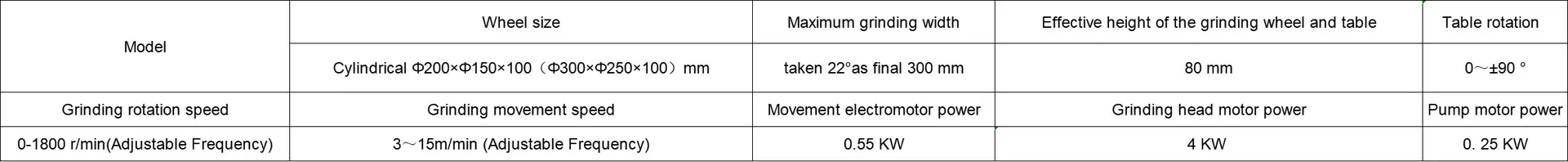

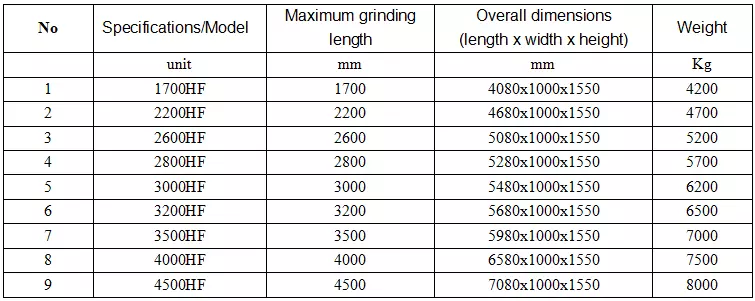

Parameter
Video
Automatic Knife Grinding Machine Model DMSQ-HF
Machine details

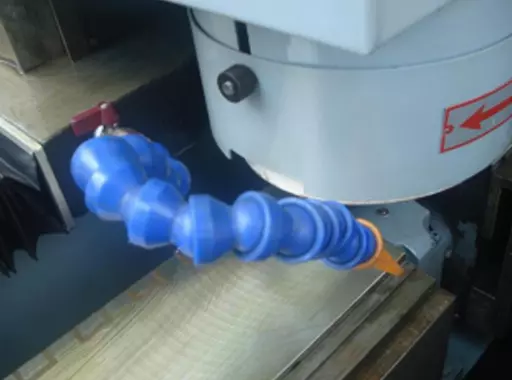

* Water-cooled motor grinding wheel head
* Polishing grinding head：German East Y series three-phase asynchronous motor
* Grinding head can move back and forth
* Frequency Control (travel mobile)
* Automatic feed grinding
* Rack and pinion
* Gantry body
* Magnetic chuck tool holder table

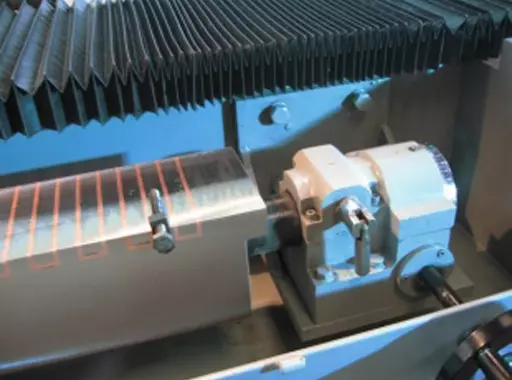

* Worm drive tool holder
* Table rotation angle: 0～±90°
