D1050T Automatic foil stamping machine

Full-automatic Flat Press Stamping Machine is the key equipment for die-cutting and creasing, cold pressing and embossing of various paper products and films, such as paper boxes, cartons, trademarks and so on. The machine adopts high-speed flyer, high-strength gripper row, swinging overall front gauge, push-pull side gauge, high-precision intermittent mechanism, pneumatic locking plate, pneumatic clutch, overload protection, and automatic paper collection, which realizes smooth paper feeding, accurate positioning, stable die-cutting, and neat paper collection.

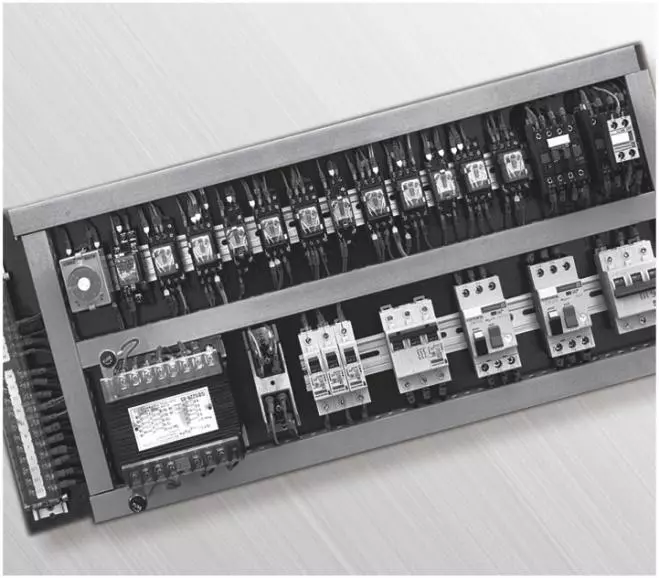

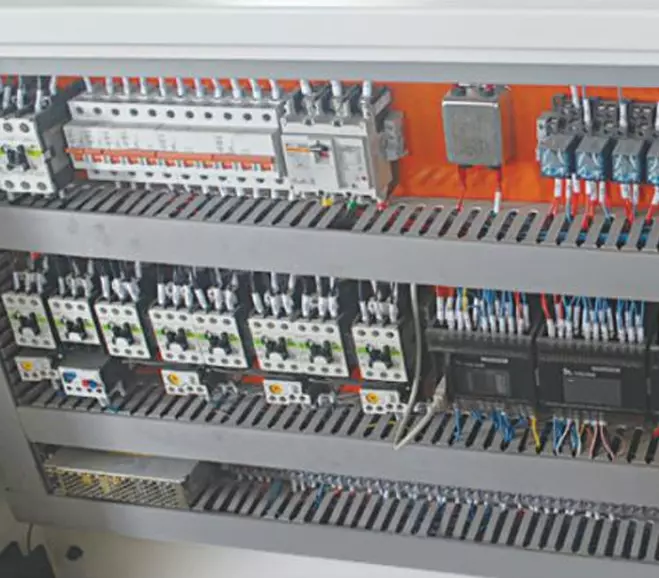

Microcomputer control is applied to realize the automation of the whole process of the machine, and the working condition and troubleshooting methods are displayed through the man-machine interface. The key components, control system and fasteners are all imported and carefully assembled to ensure the safety and reliability of the machine. There are sensors and safety devices in many places to ensure the normal work of the machine and personal safety.

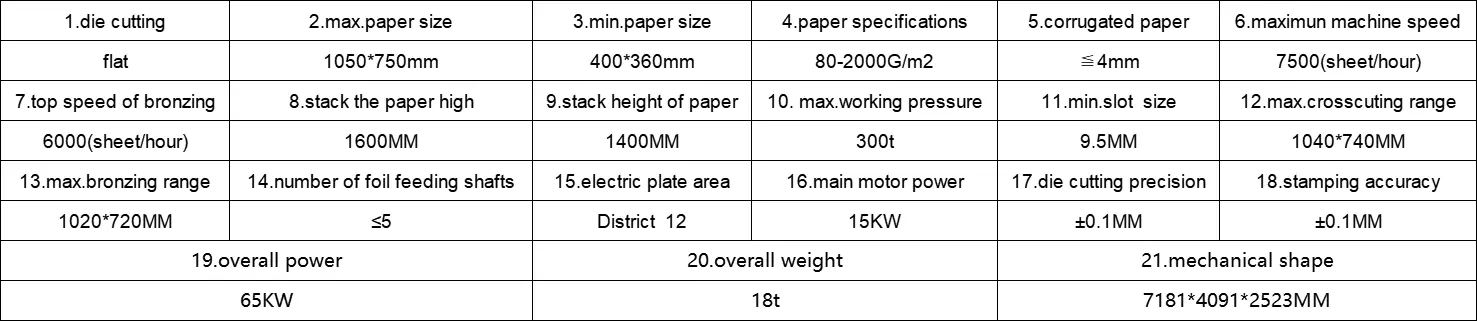

Parameter

Video

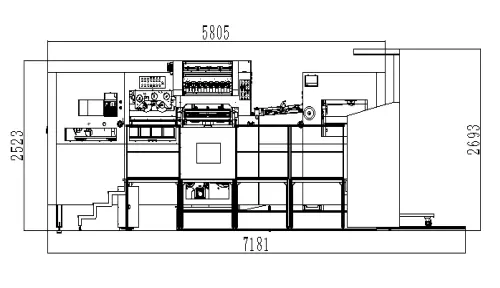

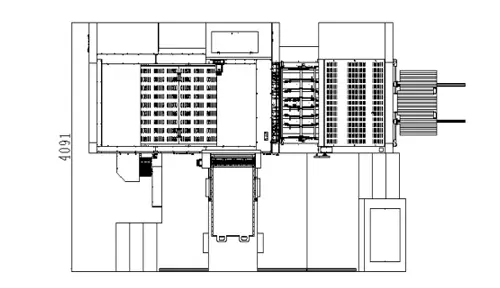

D1050ZHS Installation drawing

Ds-1050s series	functions
Ds-1050s heavy duty (deep embossing) single die cutting machine	Can be used for die cutting, cold embossing, concave convex, etc
Ds-1050rs heavy duty (deep embossing) heating single die cutting machine	It can be used for paper and film die cutting, embossing, concave convex, etc
Ds-1050fs heavy duty (deep embossing) die cutting and scraping	It can be used for paper and film die cutting, embossing, concave convex, etc
Ds-1050rfs heavy duty (deep embossing) heating type die cutting machine	Can be used for paper and film and other materials die cutting, embossing, concave convex
Ds-1050hs heavy duty (deep embossing) 2 horizontal die cutting and stamping machine	It can be used for paper and film die-cutting, stamping, embossing, concave convex, etc
Ds-1050zs heavy duty (deep embossing) 3 longitudinal die cutting and stamping machine	It can be used for paper and film die-cutting, stamping, embossing, concave convex, etc
Ds-1050zhs heavy duty (deep embossing) 3 vertical and 2 horizontal die cutting and stamping machine	It can be used for paper and film die-cutting, stamping, embossing, concave convex, etc

Principle of working mode of feida paper delivery part

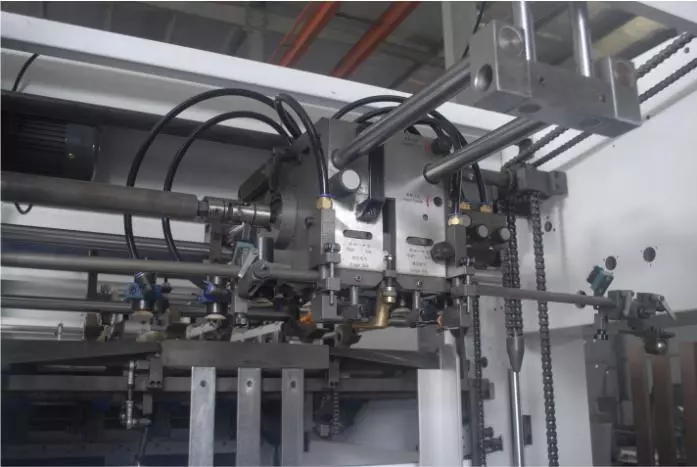

Feida, per delivery part

* European technology manufacturing precision feida head card, corrugated and gray board multi-purpose.
* Four suction four send, (more than 1300 four suction five send) can be adjusted according to the paper deformation suction Angle and height
* Unique paper receiving mechanism, suitable for different paper deformation.
* High-speed feida head is made of special aluminum alloy, all parts are imported.
* Paper feeding switch prevents false following of paper
* Double flying-head collision detection device
* Main and secondary feeding paper non-stop switching
* A set of pre-coding paper mechanism is optional
* Fish-scale paper feeding, smooth and accurate
* Paper table fine-tuning mechanism, non-stop adjustment.

Machine details ---- Principle of working mode of paper feeding part

Paper feed stand

* The advanced control system is used to control the speed device of paper feeding to make the paper delivery stale and reduce collision.
* Photoelectric double detector.
* Import paper conveyor belt.
* Ultra-Wear Resistant polyurethane paper transport wheel.
* Adjustable rubber wheels and brush wheels ensure precise positioning of arrival front and side return.

Front /side gauge

* Pre-test ensures paper arrival rate.
* Using left and right double push-pull gauges to meet different printing registration requirements.
* Sheet steel sheet press paper,uniform and reliable force.

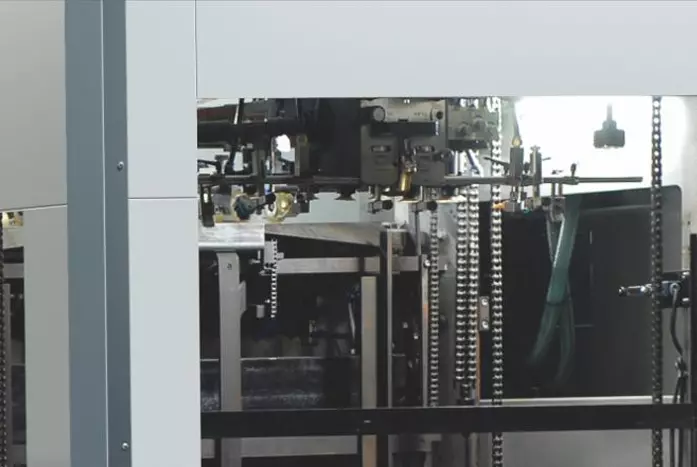

Machine details ---- Principle of working mode of die cutting part

Die cutting part

* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation.
* Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.
* Taiwan imported ultra-wear-resistant worm gear and worm.
* Convenient and fast tool template turning device.
* Strong oil supply lubrication system.
* High precision 240 degree intermittent mechanism.
* Pneumatic locking device is safe and fast.
* High speed rotary joint.
* Maximum pressure is 300 tons (maximum pressure of press type is 600 tons).
* Using advanced honeywell main motor (optional configuration),the die cutting speed can reach 7500 sheets per hour.
* Die-cutting plate frame adopts intermediate positioning system with fine-tuning device.
* Dual-color screen shows the working state of the machine at any time.

Principle of working mode of paper receiving part

Die cutting part

* Pressure bearing parts are made of high strength ductile iron-qt600-3, cast by special process, with high strength and no deformation
* Special process treated Ni Cr Mo steel crankshaft imported from Germany
* Super wear resistant worm gear and worm gear imported from Taiwan
* Convenient and quick tool template turnover device
* Powerful oil supply and lubrication system
* High precision 240 degree intermittent mechanism, stable transmission of synchronous belt,High transmission efficiency, reduce precision error
* Pneumatic locking device is safe and fast
* High speed rotary joint
* The maximum pressure reaches 300 tons (the maximum pressure of hot press machine reaches 600 tons)
* Advanced Honeywell main motor (optional configuration) is adopted to make the die cutting speed reach 7500 sheets per hour
* Die cutting board frame adopts middle positioning system with fine adjustment device
* Double color screen shows the working state of the machine at all timesmaximum pressure of hot press machine reaches 600 tons)
* Advanced Honeywell main motor (optional configuration) is adopted to make the die cutting speed reach 7500 sheets per hour
* Die cutting board frame adopts middle positioning system with fine adjustment device
* Double color screen shows the working state of the machine at all time
