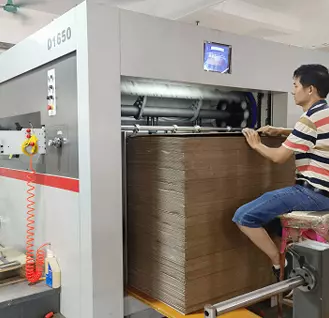

D1060/1300/1500/1650 Semi-automatic die-cutting machine

D series semi-automatic die-cutting and creasing machine is the key equipment for die-cutting and creasing, cold pressing and embossing of paper products such as cartons and boxes. The machine adopts high-strength gripper teeth, high-precision intermittent mechanism, pneumatic lock plate, pneumatic clutch, overload protection and automatic paper collection, which realizes smooth paper feeding, accurate positioning, stable die-cutting and neat paper collection.

Applying microcomputer control to realize the whole process automation of the machine, and displaying the working condition and troubleshooting method through the man-machine interface. The key components, control system and fasteners are all imported and carefully assembled to ensure the safety and reliability of the machine. There are sensors and safety devices in many places to ensure the normal work of the machine and personal safety.

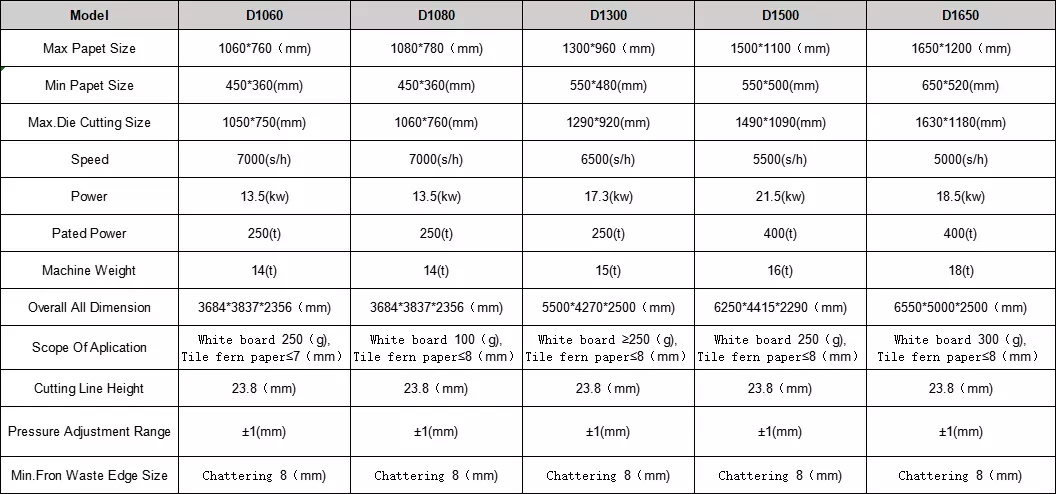

Parameter

Video

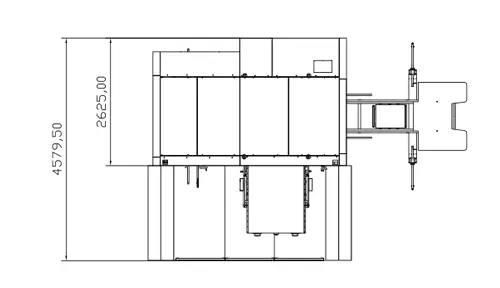

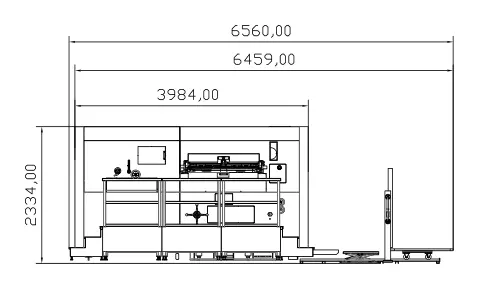

D1500 Installation drawing

Paper feeding department: manually deliver the paper structure to the designated position.

Pre coding paper

The operator can place the paper to be processed or onto the pre coding paper trolley. When the secondary paper feeding is enabled, push the pre coding paper trolley onto the paper feeding table, position it, and take over the work of the secondary paper feeding.

Principle of working mode of paper feeding part

Front /side gauge

* Pre-test ensures paper arrival rate.
* Using left and right double push-pull gauges to meet different printing registration requirements.
* Sheet steel sheet press paper,uniform and reliable force.

Working mode principle of electrical part

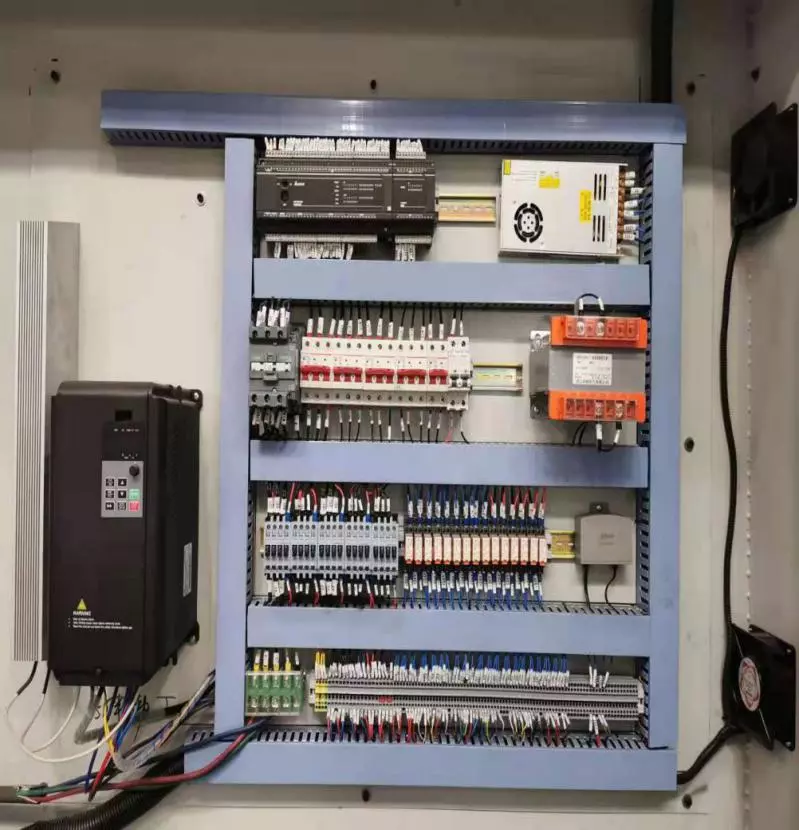

* The whole machine adopts American Meiji and French schneider electric. Components to ensure stable operation of the machine.

Principle of working mode of die cutting part

Die cutting part

* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation.
* Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.
* Taiwan imported ultra-wear-resistant worm gear and worm.

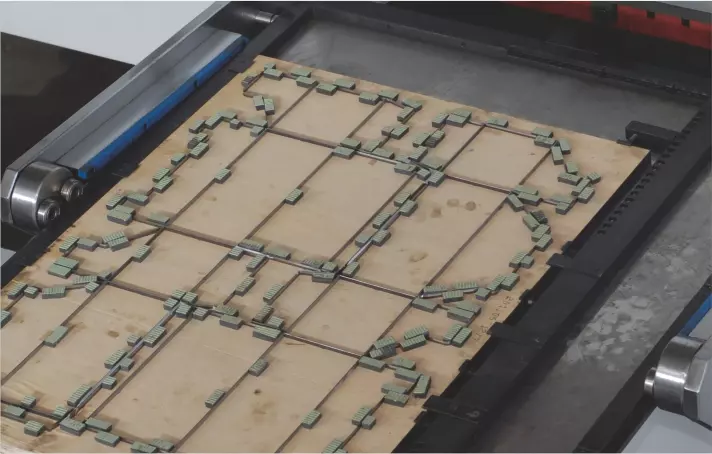

* Convenient and fast tool template turning device.
* Strong oil supply lubrication system.
* High precision 240 degree intermittent mechanism.
* Pneumatic locking device is safe and fast.
* High speed rotary joint.
* Maximum pressure is 300 tons (maximum pressure of press type is 600 tons).
* Using advanced honeywell main motor (optional configuration),the die cutting speed can reach 7500 sheets per hour.
* Die-cutting plate frame adopts intermediate positioning system with fine-tuning device.
* Dual-color screen shows the working state of the machine at any time.
* Configure oil air cooling system

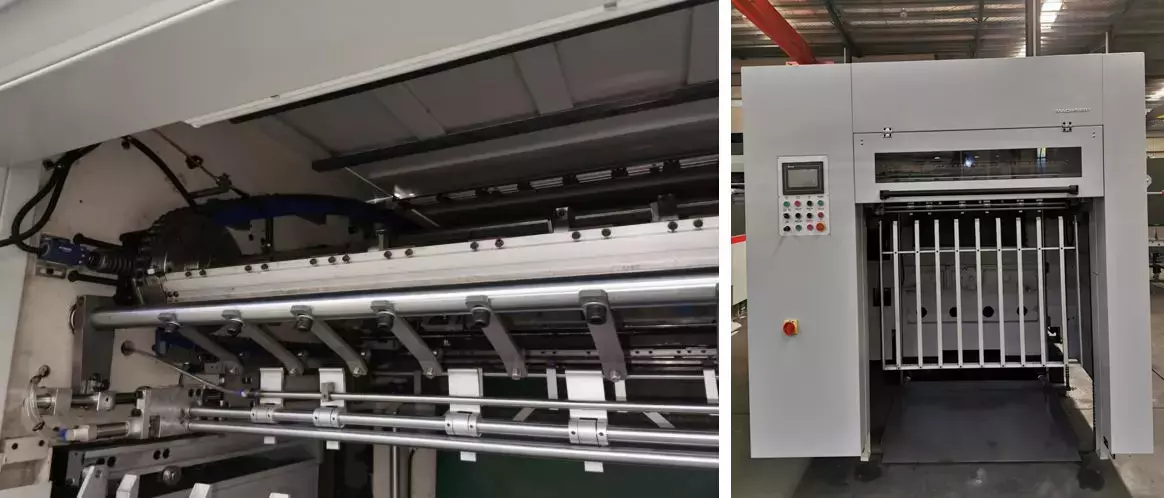

Principle of working mode of paper receiving part

Receiving department

* Automatic paper leveling device,paper receiving two-way blowing device to ensure.
* Thick and thin paper can collect paper neatly.
* Paper collecting department is equipped with control to realize more humane operation.
* Photoelectric paper receiving to ensure paper receiving regularly.
* Automatic lifting control system of paper receiving table.
* Manual paper collection.
* Main chain protective device.
* Anti-return paper device.
* Equipped with non-stop device.
