D1300/1500/1650QY Leading edge paper feeding die-cutting machine

D series automatic flat pressing die cutting indentation machine is a carton, carton, trademark and other paper products and film die cutting indentation, cold pressing concave and convex key equipment. The machine adopts high speed flyover, high strength opening teeth and paper teeth row, swing type overall front gauge, push and pull in one side gauge, high precision intermittent mechanism, pneumatic lock plate, pneumatic clutch, overload protection, automatic paper collection, realizing smooth paper feeding, precise positioning, stable die cutting and neat paper collection.

The whole process automation of the machine is realized by microcomputer control, and the working condition and troubleshooting method are displayed through man-machine interface. The key parts, control system and fasteners are all imported products, carefully assembled to ensure the safety and reliability of the machine. Sensors and safety devices are installed in many places to ensure the normal operation of the machine and personal safety。

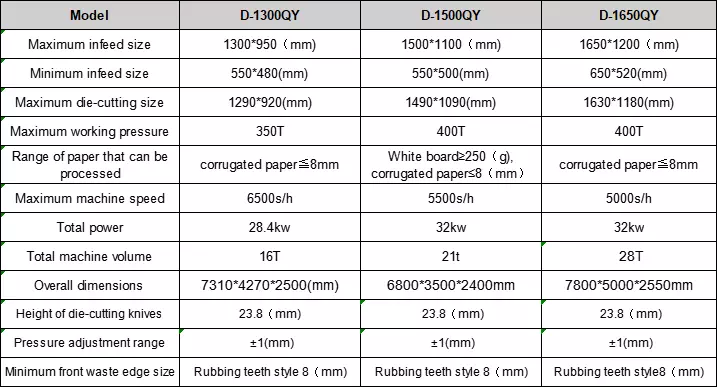

Parameter

Video

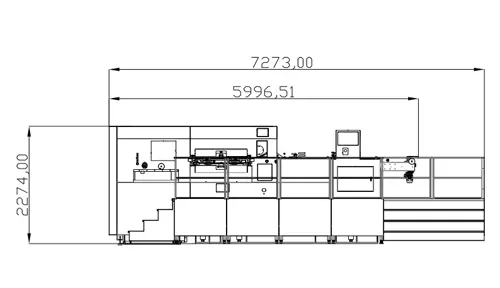

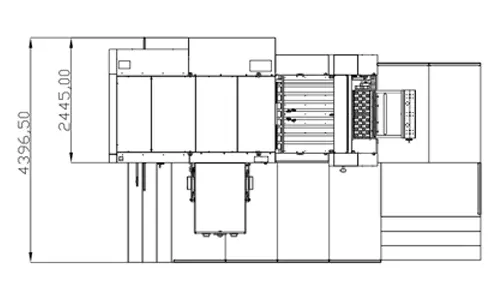

D1300QY Installation drawing

Leading edge part working mode principle

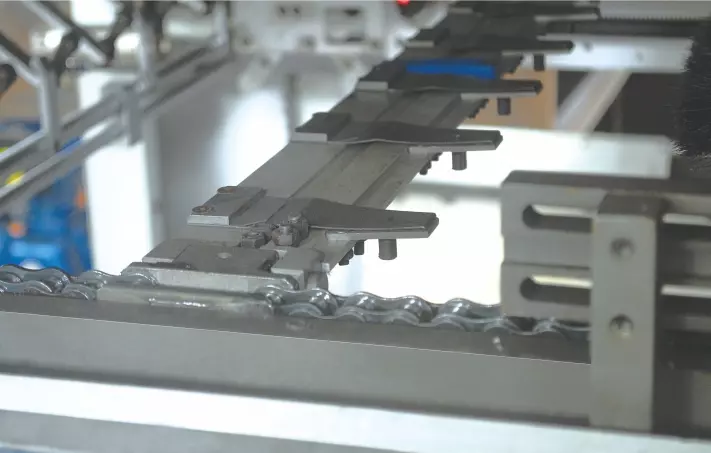

Leading edge feeding

*Adopts food grade 304 material, pressure free and scratch-proof unique design, which can minimize the scratches on the opposite paper, especially the peritoneal color printing paper.

Principle of working mode of paper feeding part

Paper feed stand

* The advanced control system is used to control the speed device of paper feeding to make the paper delivery stale and reduce collision.
* Photoelectric double detector.
* Import paper conveyor belt.
* Ultra-Wear Resistant polyurethane paper transport wheel.

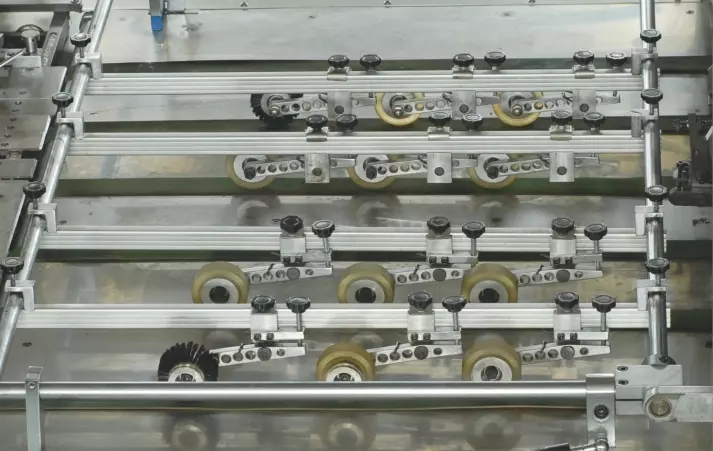

* Adjustable rubber wheels and brush wheels ensure precise positioning of arrival front and side return.

Front /side gauge

* Pre-test ensures paper arrival rate.
* Using left and right double push-pull gauges to meet different printing registration requirements.
* Sheet steel sheet press paper,uniform and reliable force.

Principle of working mode of die cutting part

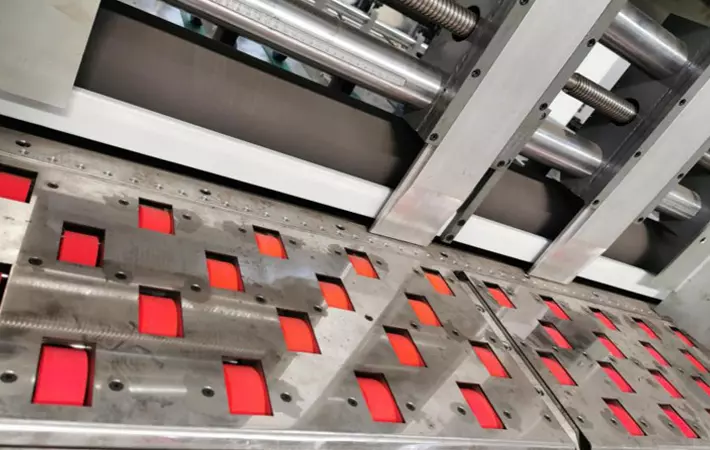

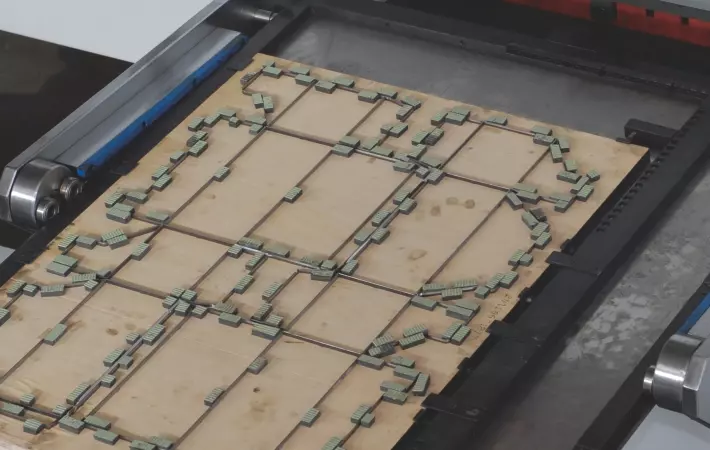

Die cutting part

* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation.
* Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.
* Taiwan imported ultra-wear-resistant worm gear and worm.
* Convenient and fast tool template turning device.
* Strong oil supply lubrication system.

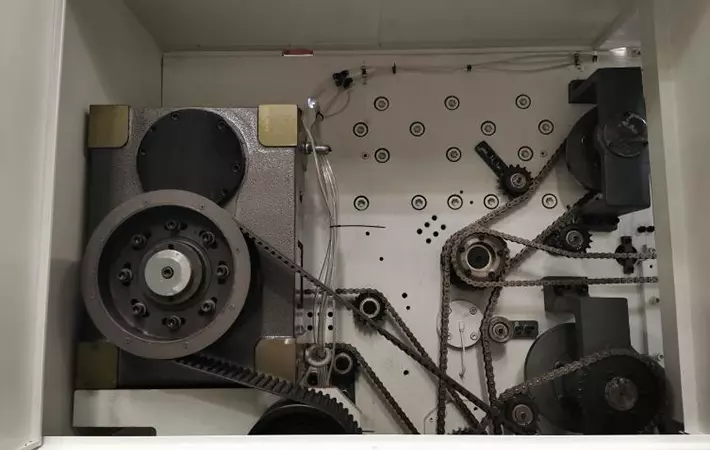

* High precision 240 degree intermittent mechanism.
* Pneumatic locking device is safe and fast.
* High speed rotary joint.
* Maximum pressure is 300 tons (maximum pressure of press type is 600 tons).
* Using advanced honeywell main motor (optional configuration),the die cutting speed can reach 7500 sheets per hour.
* Die-cutting plate frame adopts intermediate positioning system with fine-tuning device.
* Dual-color screen shows the working state of the machine at any time.
* Configure oil air cooling system

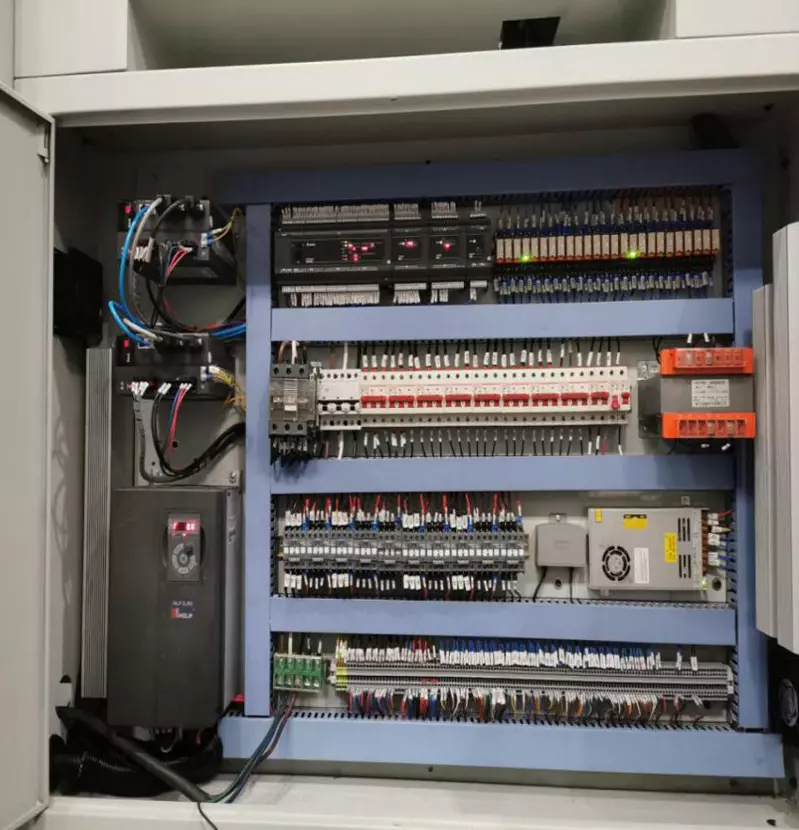

Working mode principle of electrical part

* The whole machine adopts American Meiji and French schneider electric. Components to ensure stable operation of the machine.

Principle of working mode of paper receiving part

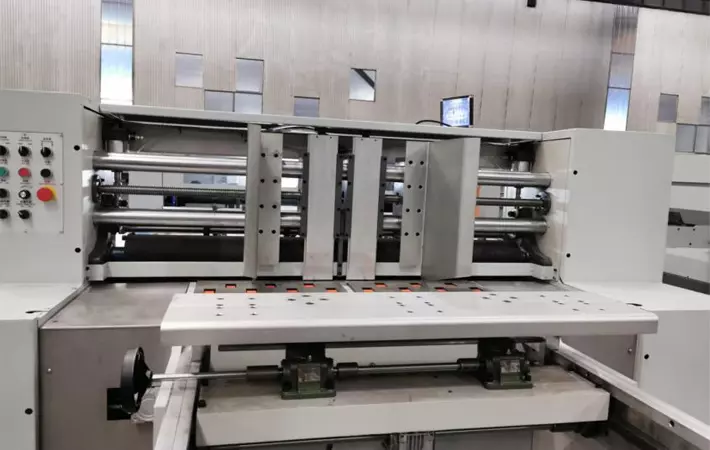

Receiving department

Automatic paper leveling device,paper receiving two-way blowing device to ensure.
* Thick and thin paper can collect paper neatly.
* Paper collecting department is equipped with control to realize more humane operation.
* Photoelectric paper receiving to ensure paper receiving regularly.
* Automatic lifting control system of paper receiving table.
* Manual paper collection.
* Main chain protective device.
* Anti-return paper device.
* Equipped with non-stop device.
