D1060/1300/1500/1650SQ Automatic die cutting machine

Full-automatic clear waste flat die-cutting and creasing machine is the key equipment for die-cutting and creasing, cold pressing and embossing of various paper products and films, such as carton, cardboard box, trademark, and so on.

The machine adopts high-speed flyer, high-strength gripper teeth row, swinging overall front gauge, push and pull in one side gauge, high-precision intermittent mechanism, pneumatic lock plate, pneumatic clutch, overload protection, automatic paper collection, to achieve smooth paper feeding, accurate positioning, stable die cutting, paper collection neat.

Applying microcomputer control to realize the whole process automation of the machine, and displaying the working condition and troubleshooting method through the man-machine interface. The key components, control system and fasteners are all imported and carefully assembled to ensure the safety and reliability of the machine. There are sensors and safety devices in many places to ensure the normal work of the machine and personal safety.

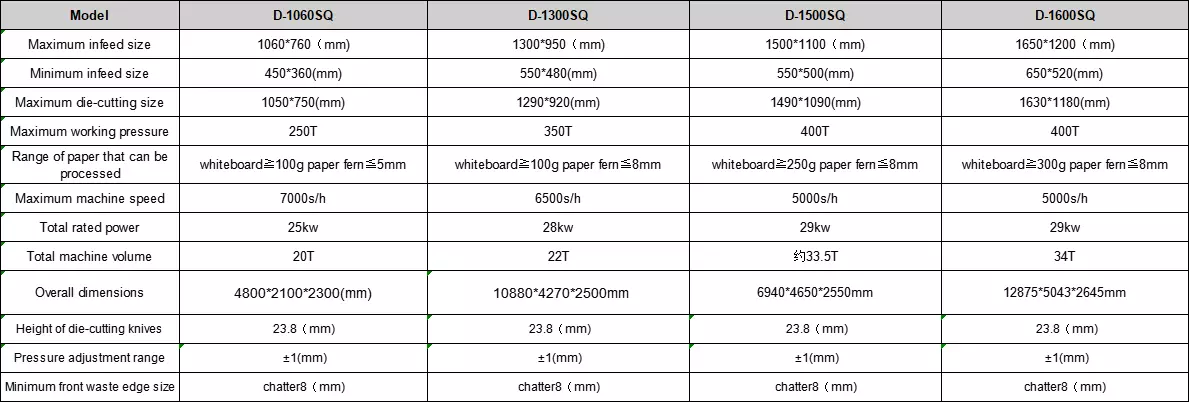

Parameter

Video

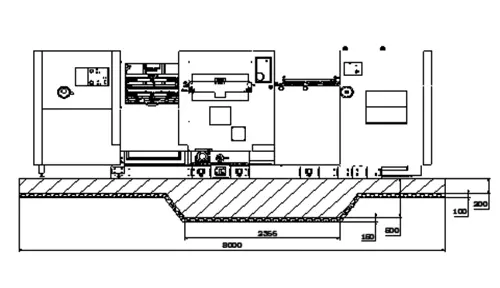

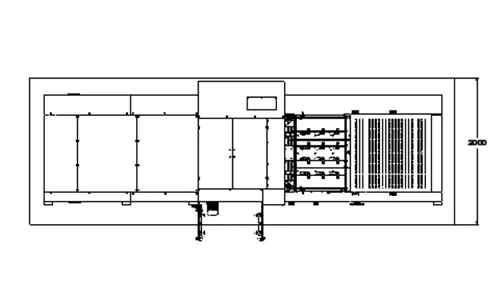

D1060SQ Installation drawing

Feida, per delivery part

* European technology manufacturing precision feida head card, corrugated and gray board multi-purpose.

* Four suction four send, (more than 1300 four suction five send) can be adjusted according to the paper deformation suction Angle and height

* Unique paper receiving mechanism, suitable for different paper deformation.

* High-speed feida head is made of special aluminum alloy, all parts are imported.

* Paper feeding switch prevents false following of paper

* Double flying-head collision detection device

* Main and secondary feeding paper non-stop switching

* A set of pre-coding paper mechanism is optional

* Fish-scale paper feeding, smooth and accurate

* Paper table fine-tuning mechanism, non-stop adjustment.

Machine details ---- Principle of working mode of paper feeding part

Paper feed stand

* The advanced control system is used to control the speed device of paper feeding to make the paper delivery stale and reduce collision.
* Photoelectric double detector.
* Import paper conveyor belt.
* Ultra-Wear Resistant polyurethane paper transport wheel.
* Adjustable rubber wheels and brush wheels ensure precise positioning of arrival front and side return.

Front /side gauge

* Pre-test ensures paper arrival rate.
* Using left and right double push-pull gauges to meet different printing registration requirements.
* Sheet steel sheet press paper,uniform and reliable force.

Machine details ---- Principle of working mode of die cutting part

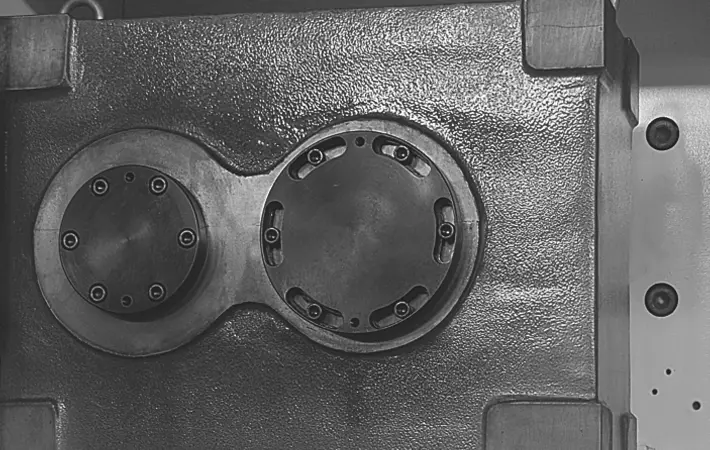

Die cutting part

* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation.
* Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.
* Taiwan imported ultra-wear-resistant worm gear and worm.
* Convenient and fast tool template turning device.
* Strong oil supply lubrication system.
* High precision 240 degree intermittent mechanism.
* Pneumatic locking device is safe and fast.
* High speed rotary joint.
* Maximum pressure is 300 tons (maximum pressure of press type is 600 tons).
* Using advanced honeywell main motor (optional configuration),the die cutting speed can reach 7500 sheets per hour.
* Die-cutting plate frame adopts intermediate positioning system with fine-tuning device.
* Dual-color screen shows the working state of the machine at any time.

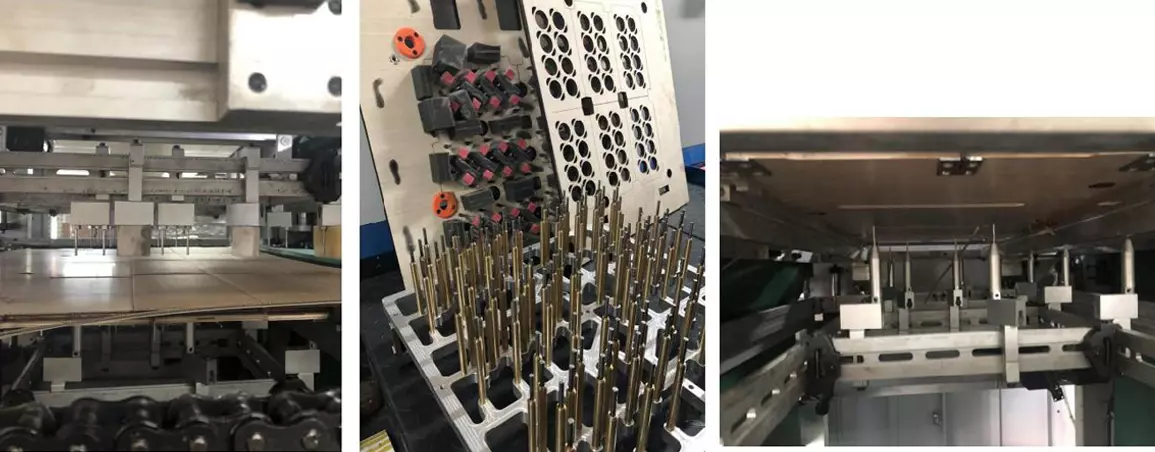

Design for waste elimination

The middle clearing is mainly clearing holes and windows, the bracket can be pulled out of the mechanism, installing the clearing plate is fast and convenient, the clearing structure adopts the design of the upper, middle and lower three frames, according to the needs of the die-cutting products, you can choose the punch clearing or template clearing, clearing template adopts the center of the positioning method, easy to change the plate, accurate positioning, smooth operation, the upper and lower clearing frames of one set each; the overall operation of the equipment is simple, high degree of automation, increase production capacity to reduce the cost and labor intensity. It is easy to operate and highly automated, which improves the production capacity and reduces the cost and labor intensity.

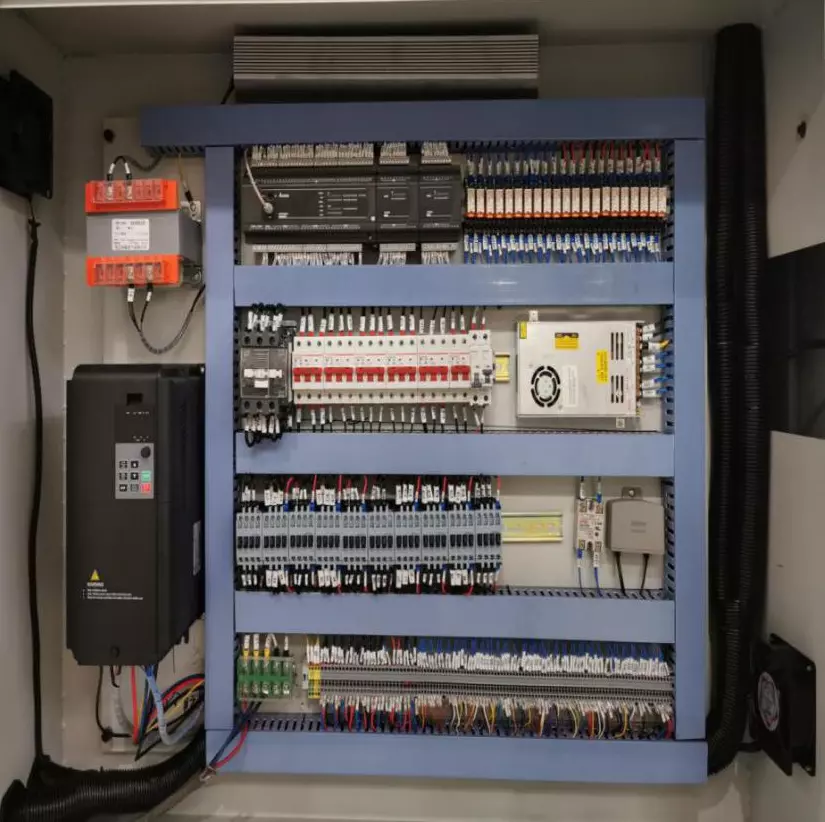

Machine details ---- Working mode principle of electrical part

* The whole machine adopts American Meiji and French schneider electric. Components to ensure stable operation of the machine.

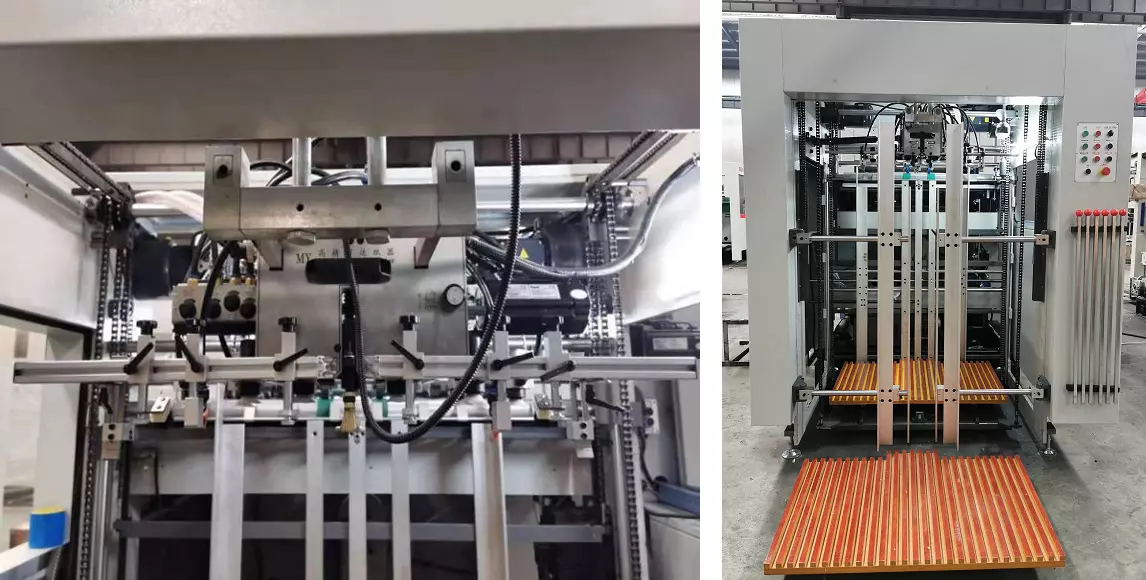

Machine details ---- Principle of working mode of paper receiving part

Receiving department

* Automatic paper leveling device,paper receiving two-way blowing device to ensure.

* Thick and thin paper can collect paper neatly.

* Paper collecting department is equipped with control to realize more humane operation.

* Photoelectric paper receiving to ensure paper receiving regularly.

* Automatic lifting control system of paper receiving table.

* Manual paper collection.

* Main chain protective device.

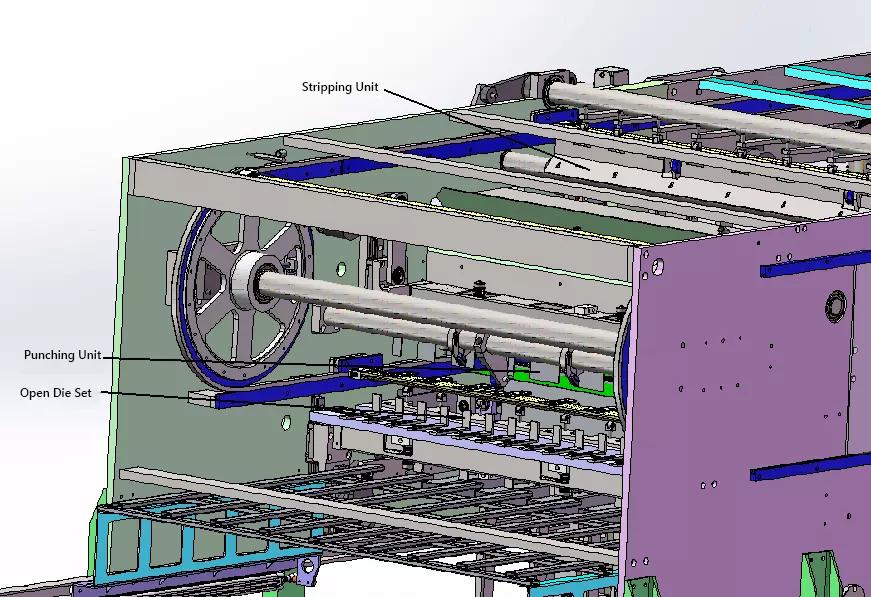

Stripping Unit

It can be operated by the corresponding switch on the key board, equipped with the replacement of the finished parts and the opening parts, and can switch between full and semi-removal.
